ARMOURED CONVEYORS
Manufacturing Special Program

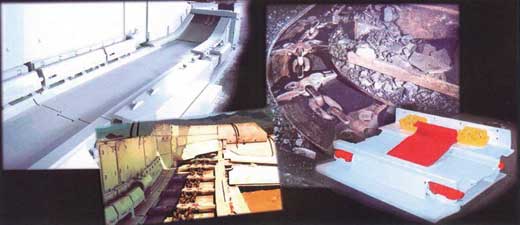

“Halbach & Braun” – Emeinsa equipment of armoured conveyor with inbuilt crusher for crushing the product.
[CLICK OVER THE IMAGE TO ENLARGE]
Special conveyors for high productio cuts can be manufactured and supplied with the co-operation fo “HALBACH & BRAUN”.

When selecting a high conveying capacity conveyor, it is essential to properly choose the type and the main quality sigma profile as well as the width of the conveying channels. This is crucial regarding its life and capacity.

“HALBACH & BRAUN” includes three profile types for conveying channels in its supply program.

Conveying channels including the above profiles, combined with a bottom plate with similar thickness and capacity, hava showed their performance regarding conveying capacity and hours of work in many apllications wordwide.
Armoured conveyor with bent, “Halbach & Braun” – Emeinsa system.

Armoured conveyor transition, “Halbach & Braun” – system.

Armoured conveyor transition, “Halbach & Braun” – system.

Armoured conveyor bended 90º, “Halbach & Braun” – Emeinsa system.

Armoured conveyor bended 90º, “Halbach & Braun” – Emeinsa system.
Twin central chain armoured conveyor, “Halbach & Braun” – Emeinsa system.

Load transfer between “Halbach & Braun” – Emeinsa armoured conveyor.

PROFILE
CHANNEL WIDTH
BOTTOM PLATE THICKNESS
JUNCTION BETWEEN CHANNELS
732 / 832/ 1032 mm.
30 mm.
L 2000 (2000 KN)
FIELD OF APPLICATION
Conveyors for capacities up to 1000 t/h.
The HB-227 profile and the 30 mm thick overlapped bottom plate together with the L2000 (2000 KN tensile breaking strength) centring joint achieve up to 3.5 million tonnes of service life for the channels under standard service conditions. Tje conveyor can be used as a crosscutter or planer cut conveyor or as a gallery conveyor.
PROFILE
CHANNEL WIDTH
BOTTOM PLATE THICKNESS
JUNCTION BETWEEN CHANNELS
764 / 864/ 1064 mm.
35 mm.
L 2500 (2500 KN)
FIELD OF APPLICATION
Conveyors for capacities up to 2000 t/h.
The HB-260 profile and the 35 mm thick overlapped bottom plate together with the L2500 (2500 KN tensile breaking strength) centring joint achieve up to 5 million tonnes of service life for the channels under standard service conditions. The conveyor can be used as a crosscutter or planer cut conveyor or as a gallery conveyor.
PROFILE
CHANNEL WIDTH
BOTTOM PLATE THICKNESS
JUNCTION BETWEEN CHANNELS
 880 / 1000/ 1200 mm.
40 mm.
L 3000 (3000 KN)
FIELD OF APPLICATION
Conveyors for capacities up to 3500 t/h.
The HB-280 profile and the 40 mm thick overlapped bottom plate together with the L3000 (3000 KN tensile breaking strength) centring joint achieve up to 7 million tonnes of service life for the channels under standard service conditions. The conveyor can be used as a crosschtter or planer cut conveyor or as a gallery conveyor.
